Custom Prefabricated Room with Toilet & Pantry (Self-Contained Unit)
Project Overview:
Kazema successfully designed, manufactured, and delivered a custom prefabricated open-plan room with integrated toilet and pantry, engineered as a fully self-contained solution with dedicated water and waste tanks. This project was developed to meet functional, durability, and comfort requirements suitable for UAE site conditions, providing a ready-to-use modular space with minimal site preparation.
The unit combines workspace efficiency, sanitation, and utility services within a single prefabricated structure, ensuring fast deployment, long service life, and ease of relocation.
Project Specifications
Project Type:
Custom Prefab One Open Room with Toilet and Pantry (With Tanks)
Overall Size:
12.0 m (Length) × 3.6 m (Width) × 3.0 m (Height)
Structure Type:
Relocatable, self-contained prefabricated modular unit
Structural System & Base Frame
The prefab unit is constructed on a heavy-duty steel chassis frame, designed to withstand transportation, lifting, and long-term usage:
Steel chassis fabricated from structural tubes
Full perimeter beams with central runner and cross members
All steel components wire-brushed for surface preparation
Protected with one coat of anti-corrosion primer
This robust base ensures structural integrity, stability, and long service life under UAE climatic conditions.
Wall Construction & Insulation
The wall system is designed to provide thermal insulation, durability, and a clean interior finish:
External Wall Finish
6 mm thick cement board
Finished with off-white exterior emulsion paint
Internal Wall Finish (Room Area)
12 mm thick gypsum board
Finished with white emulsion paint
Internal Wall Finish (Pantry & Toilet)
6 mm thick cement board
Finished with white emulsion paint for moisture resistance
Wall Insulation
50 mm thick rock-wool insulation
Density: 30 kg/m³
Enhances thermal performance and acoustic comfort
Roof & Ceiling System
The roof structure is engineered for heat resistance and weather protection:
Roof Panel Options
GI profile sheets / Aluminium-GI sandwich panels
PU insulated sandwich panel system
Technical Details
GI polyester-coated sheets
Steel supports on the backside panel
GI outer thickness: 0.05 mm
Galvanized steel thickness: 26 gauge
PU insulation density: 35 kg/m³
Insulation thickness: 50 mm
False Ceiling
12 mm thick gypsum board
Finished with white paint for a clean interior appearance
Electrical Installation
The unit is fully electrified with a safe, non-concealed wiring system:
Fluorescent LED lights for interior illumination
Exterior light for safety and visibility
Non-concealed electrical wiring
32A main power inlet
Provision for split air-conditioning units
Air Conditioning
2 × 1.5-ton split AC units
Brand: Super General or equivalent

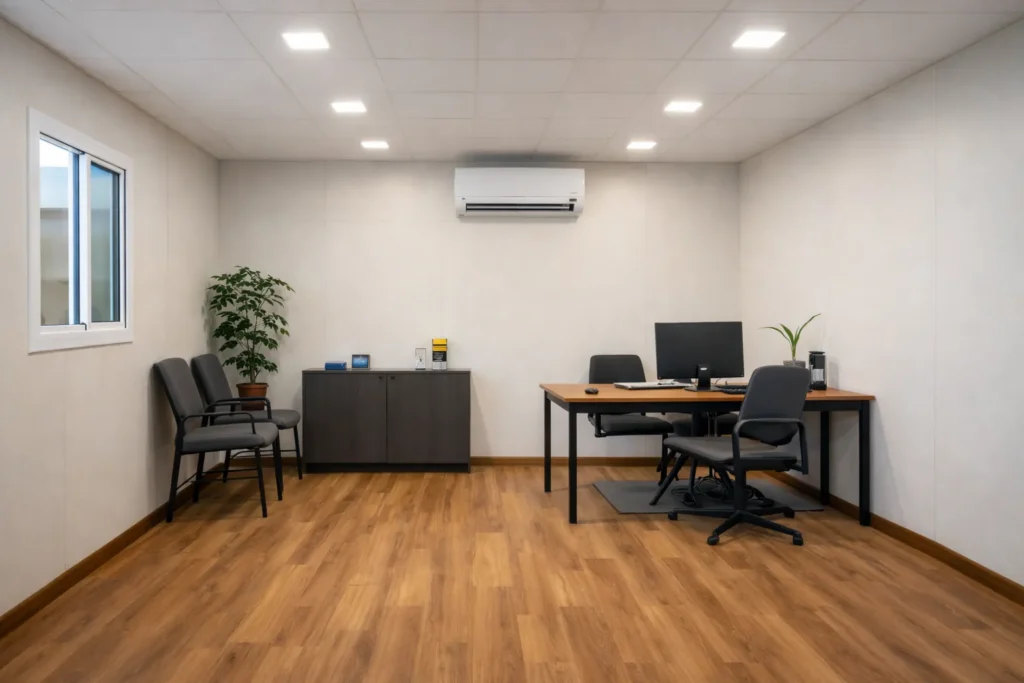

Flooring System
Main Room Flooring
Vinyl flooring installed over 18 mm marine plywood
Provides durability, comfort, and easy maintenance
Toilet & Pantry Flooring
GRP flooring installed over 18 mm marine plywood
Integrated drain holes for water discharge
Doors & Windows
Main Entrance
1 × heavy-duty aluminium powder-coated door
Internal Doors
Panel doors for toilet and pantry partitions
Windows
1 × aluminium powder-coated sliding window
Allows natural light and ventilation

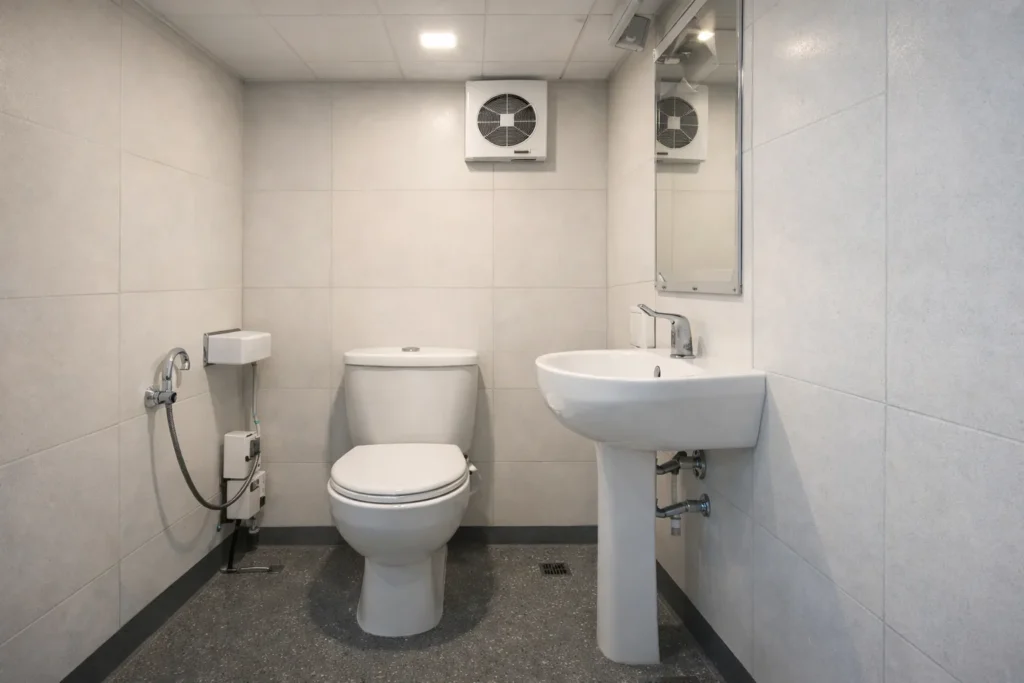

Toilet Compartment Details
The toilet cabin is designed for hygienic and efficient usage:
1 × Western-style WC with flushing system
Spray hose installed
1 × washbasin
1 × exhaust fan
1 × tube light

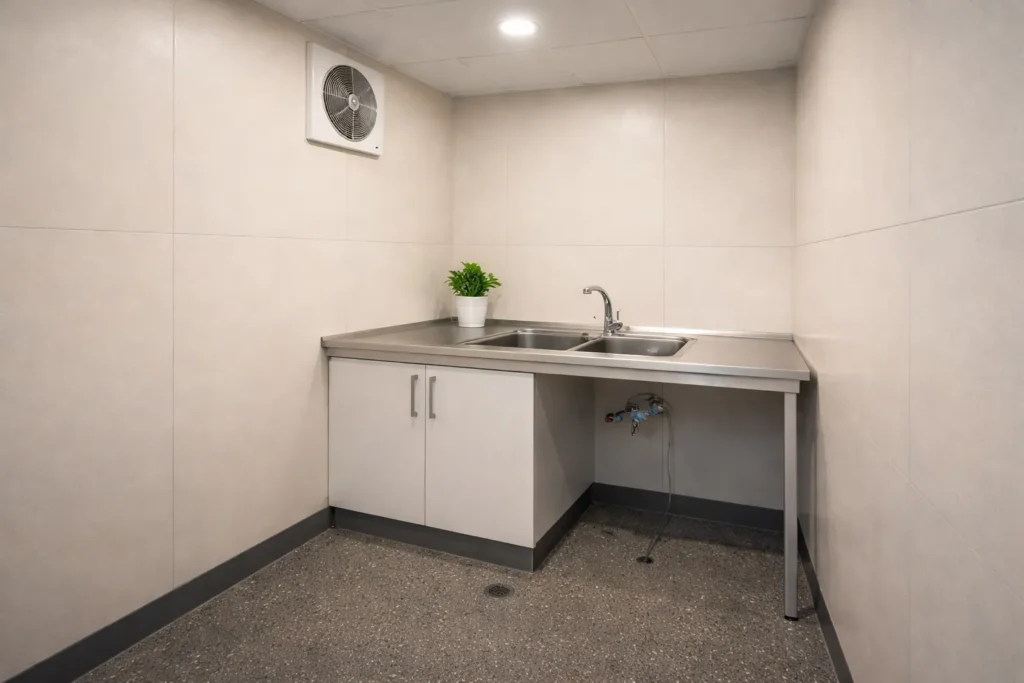

Pantry Area Details
The pantry compartment is fully functional and optimized for daily use:
Kitchen sink area with countertop and tap
1 × exhaust fan
1 × tube light
Plumbing & Drainage System
A complete plumbing network is installed with durable materials:
3/4″ PPR pipeline for fresh water supply
4″ UPVC/MS pipes for wastewater discharge
1.5″ UPVC/MS pipes for greywater
All plumbing lines are non-concealed for ease of maintenance and inspection.
Water & Waste Tank System
The unit operates independently using integrated tank solutions:
Water Tank
Capacity: 500 gallons
Material: GRP / PVC
Installed beside the toilet
Equipped with automatic pressure pump control
Waste Tank
Capacity: 1,350 gallons
Material: GRP
Fitted with:
3-inch gate valve
4-inch outlet pipe for sewage removal
Mounted on a built-in steel support frame beneath the unit
Project Outcome
This completed project delivers a fully self-sufficient prefab solution combining workspace, sanitation, and utility services in one modular unit. The structure is designed for quick installation, minimal civil work, and long-term reliability, making it ideal for site offices, remote locations, temporary accommodations, and operational facilities across the UAE.
Kazema General Trading L.L.C. continues to provide customized prefab and modular solutions tailored to client requirements, ensuring quality construction, compliance, and operational efficiency.
