5M Modular Multi-Cabin Unit | Custom Prefab Toilet with Tanks UAE

Heavy-duty custom prefab toilet with integrated water and waste tanks, multi-cabin layout, and insulated structure. Ideal for construction sites, labour camps, and remote project locations across the UAE.

Get Quote
Custom prefab portable toilet 5 meter multi cabin unit with waste tank UAE Kazema
  • Abu Dhabi
  • 5m (L) x 2.4m (W) x 3.2m (H)
  • 08/04/2026

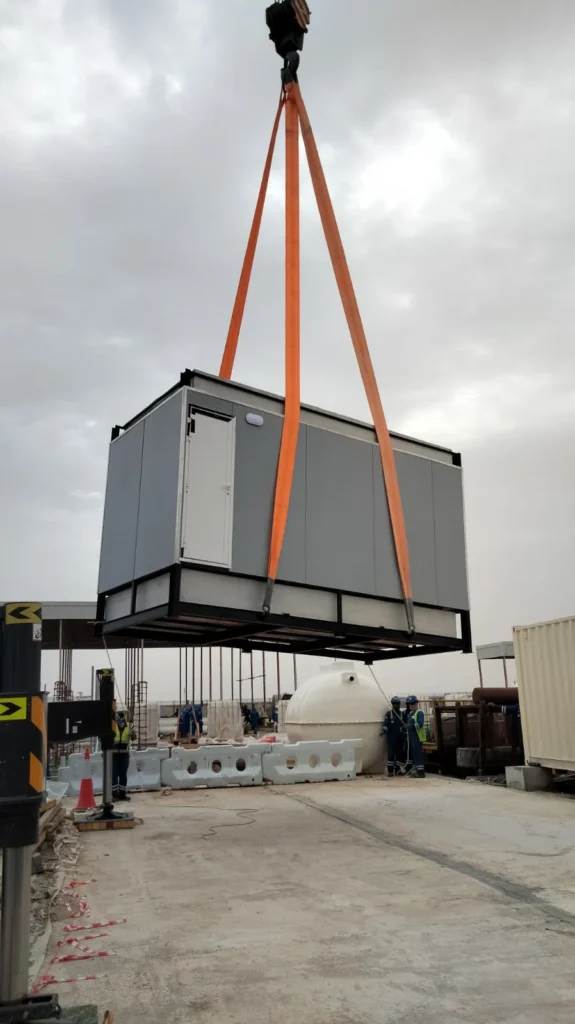

5 cabin custom portable toilet unit lifting and handling at Kazema UAE

About Custom Prefab Toilet with Tanks – 5M Modular Unit

The Custom Prefab Toilet with Tanks is a robust and fully equipped sanitation solution designed for large-scale and high-demand environments. Built with a strong steel chassis frame and high-quality materials, this modular unit ensures durability, stability, and long-term performance in harsh UAE weather conditions.

The structure features insulated walls with fire-rated cement boards and rockwool insulation, providing thermal efficiency and safety. Its spacious five-cabin layout, along with dedicated common areas, makes it suitable for accommodating multiple users comfortably.

Equipped with an overhead 800-gallon water tank and a 1000-gallon waste tank, the unit offers complete independence from external plumbing systems. The inclusion of modern electrical fittings, ventilation systems, and efficient plumbing ensures hygiene, convenience, and ease of maintenance.

Designed for versatility, this prefab toilet unit is ideal for construction sites, industrial zones, events, and remote project locations where reliable sanitation infrastructure is essential.

Project Gallery

Custom Prefab Toilet with Tanks – Project Detail Specification

Size: 5m (L) x 2.4m (W) x 3.2m (H)

Base Frame:

  • Heavy-duty steel chassis frame
  • Full perimeter beams with central runner and cross members
  • Wire brushed steel with primer coating for corrosion protection

Wall & Insulation:

  • External: 6mm fire-rated cement board with weatherproof emulsion paint
  • Internal: 6mm fire-rated cement board with white paint finish
  • Insulation: 50mm Rockwool (30kg/m³ density)

Roof:

  • GI profile sheets / Aluminum-GI sandwich panel with PIR insulation
  • 50mm thickness with 35kg/m³ density
  • Polyester coated GI sheets with steel support backing

Toilet Layout:

  • Five-cabin partition system
  • 1 Western WC with spray hose and flushing system

Common Area:

  • 2 Wash basins with taps
  • 2 Urinals with push flush and partitions

Flooring:

  • GRP flooring over 18mm fire-rated cement board
  • Integrated drain hole for easy cleaning

Doors:

  • 1 heavy-duty aluminium powder-coated main entrance door
  • Internal panel doors for cabins

Electrical:

  • LED lights inside each cabin
  • Exterior light
  • Exhaust fan in each cabin
  • Non-concealed wiring system
  • 32A power inlet

Plumbing:

  • ¾” PPR water pipeline (non-concealed)
  • 4” UPVC/MS pipes for wastewater
  • 1.5” UPVC/MS pipes for greywater

Tanks:

  • Water Tank: 800 gallons GRP tank (mounted above the unit)
  • Waste Tank: 1000 gallons GRP tank with 3-inch gate valve and 4-inch sewage outlet
  • Mounted on integrated steel support frame underneath
