Compact Security Cabin with AC in Dubai | Prefab Guard Cabin UAE

Compact security cabin with AC, insulated walls, and durable steel structure. Ideal for guard use, checkpoints, and site security applications in Dubai.

Get Quote
  • Dubai, UAE
  • 1.3m (L) x 1.3m (W) x 2.4m (H)
  • 05/03/2026

About Security Cabin with AC

This Security Cabin with AC is designed for compact spaces while ensuring maximum comfort and durability. Built with a strong steel base frame, the unit offers excellent structural stability for long-term use.
The cabin features insulated walls using rock wool, providing thermal efficiency in hot climates like the UAE. High-quality cement board external finish and gypsum internal finish ensure durability and a clean interior look.
Equipped with a 1-ton split AC and complete electrical setup, this unit is ready for immediate deployment. Delivered in Dubai, it is an ideal solution for security personnel, parking areas, entry gates, and construction sites.

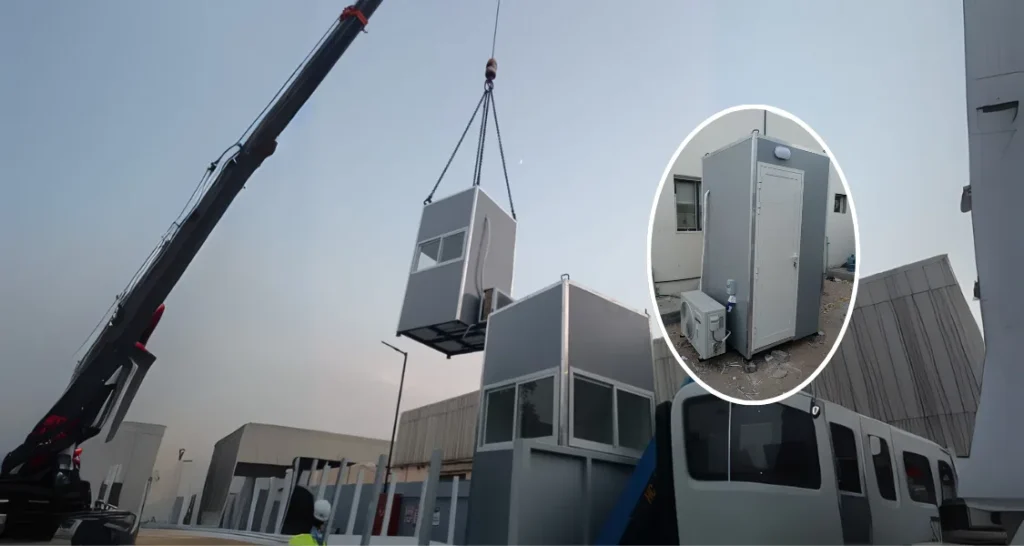

Project Gallery

Security Cabin with AC: Project Detail Specification

Size: 1.3m (L) x 1.3m (W) x 2.4m (H)
Location: Dubai, UAE

Base Frame:

  • Steel floor frame constructed from tubes with central runner and cross members
  • All steel wire brushed and coated with one coat primer for protection

Walls:
External Finish:

  • 06mm thick cement board with weatherproof grey emulsion paint

Internal Finish:

  • 12mm thick gypsum board finished with white emulsion

Insulation:

  • 30mm thick rock wool insulation, 30kg/m³ density

Roof:

  • 50mm Polyurethane Aluminum/GL sandwich panel
  • Flat exterior and interior finish

Technical Specification:

  • GI polyester coated sheets with steel supports
  • Outer thickness: 0.05mm
  • Material: Galvanized steel (26 gauge)
  • Insulation: PU 35kg/m³, 50mm thickness

False Ceiling:

  • 12mm thick gypsum board finished with white paint

Flooring:

  • Vinyl flooring on top of 18mm cement board base

Doors & Windows:
Door:

  • Aluminum door with automatic door stopper

Windows:

  • 2 x side fixed cum sliding clear glass

Electrical:

  • Fluorescent LED light inside
  • Waterproof LED light outside
  • Switches and plug points
  • 32A main power inlet
  • 1 x 1-ton split AC (Super General or equivalent)
