Custom Prefab Open Room with Integrated Security Cabins | Hamriyah Free Zone, Sharjah
High-quality custom prefab structure featuring a two-room open layout with integrated security cabin design, delivered and installed at Hamriyah Free Zone, Sharjah. Built for durability, thermal comfort, and operational efficiency in industrial and commercial environments.
- Sharjah
- Size - 6m L x 2.4m W x 2.6m H
- 27 Aug 2025
About Custom Prefab Open Room with Security Cabins – Hamriyah Free Zone, Sharjah
This project involved the design, fabrication, and installation of a custom prefab two open-room structure integrated with security cabin functionality for a facility located in Hamriyah Free Zone, Sharjah.
The client required a durable and climate-controlled modular building suitable for on-site staff use and security operations. The solution was engineered using a high-strength steel chassis frame and insulated prefab panels to ensure long-term performance in UAE weather conditions.
The structure was delivered as a fully finished, ready-to-use modular unit with electrical systems, AC installation, insulation, and interior finishing completed on-site.

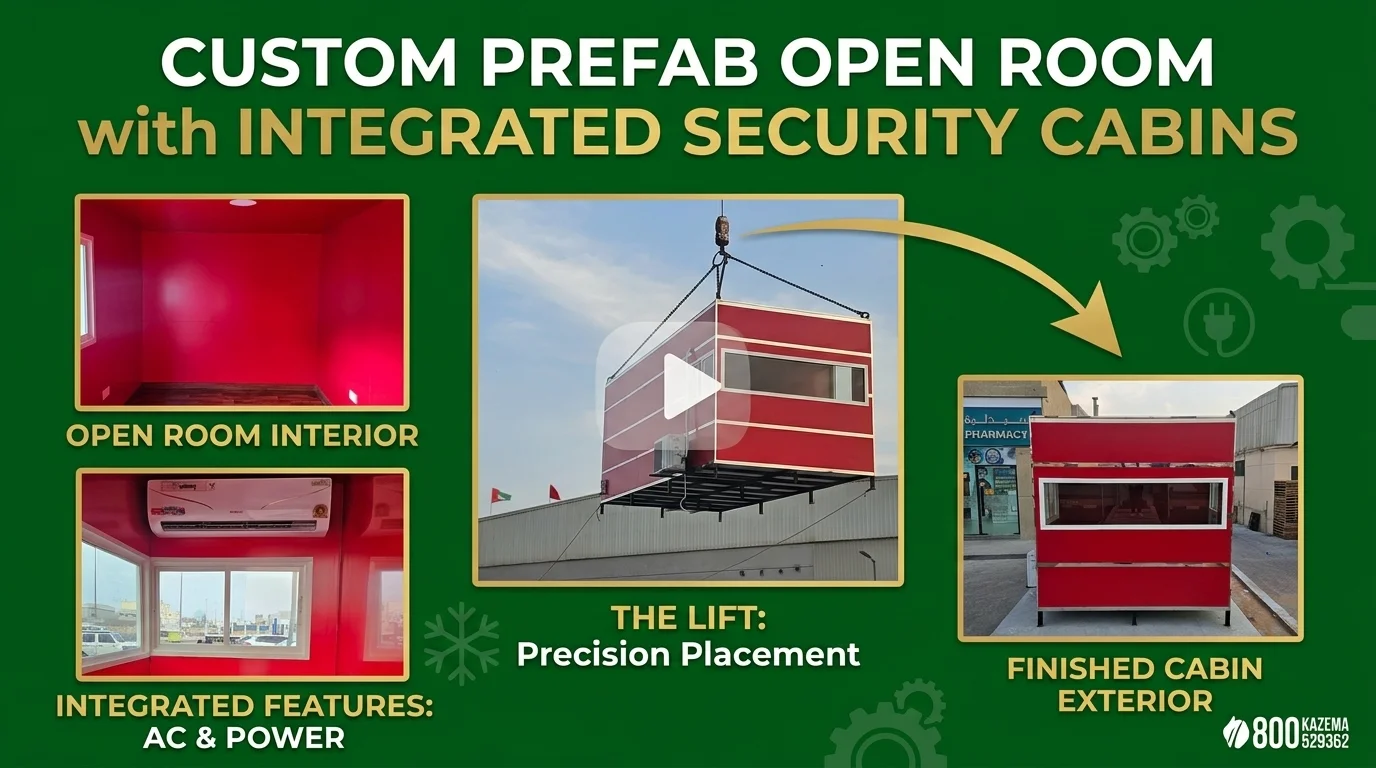

Inside the Custom Prefab Open Room with Integrated Security Cabins
Project Description
The installed unit is a Custom Prefab Two Open Room structure (6m L x 2.4m W x 2.6m H) designed to serve dual operational purposes, including workspace and security monitoring support.
The building was engineered with a reinforced steel chassis frame, constructed using tubular steel sections with full perimeter beams, central runners, and cross members. All steel components were wire-brushed and coated with protective primer to ensure corrosion resistance and durability.
Structure & Build Specification
Base Frame:
- Heavy-duty steel chassis frame
- Tubular steel structure with perimeter beams
- Central runner and cross members
- Anti-corrosion primer coating
Insulation & Wall System
- External Finish: ACP panels
- Internal Finish: ACP panels
- Wall Insulation: 50mm Rockwool insulation (30kg/m³ density)
- High thermal and acoustic performance suitable for industrial environments
Roof & Ceiling System
- 50mm GI/Aluminium sandwich panel with PU insulation
- False ceiling: 12mm gypsum board with white paint finish
- Designed for heat resistance and interior comfort
Electrical Installation
- Fluorescent LED lighting inside each room
- External lighting system for security visibility
- Fully concealed wiring system
- 32A power inlet for heavy-duty load usage
- 2 × 1.5 ton split AC units (Super General or equivalent)
Flooring System
- Vinyl flooring installed over 18mm cement board
- Durable, easy to maintain, and suitable for heavy foot traffic
Room Configuration
First Room (Main Entry / Office-Security Zone)
- 1 Aluminium entrance door with glass panel
- 2 Aluminium powder-coated windows with glass
- Designed for monitoring, supervision, or administrative use
Second Room (Support / Security Cabin)
- 1 Aluminium powder-coated door
- 1 Aluminium powder-coated window
- Suitable for security personnel or operational control use
Project Highlights
- Location: Hamriyah Free Zone, Sharjah
- Project Type: Custom Prefab Security Integrated Structure
- Structure Size: 6m × 2.4m × 2.6m
- Configuration: Two Open Rooms with Security Functionality
- Insulation: Rockwool + ACP panel system
- HVAC: 2 × Split AC units installed
- Electrical System: Fully concealed wiring with industrial power input
- Flooring: Vinyl over cement board base
- Completion Date: 27 August 2025
Execution & Outcome

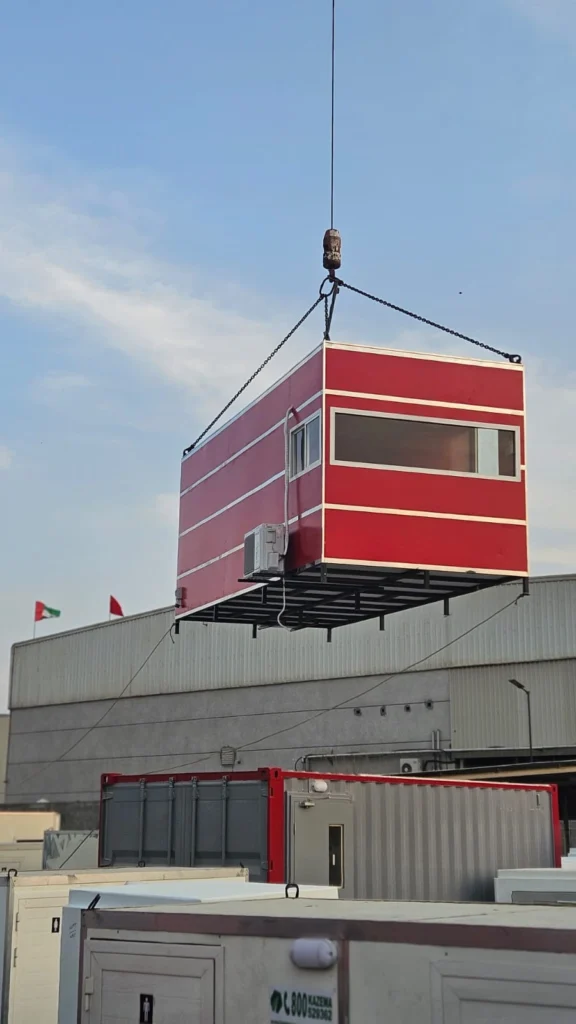

The project was completed successfully with full on-site installation and system integration. The structure was delivered as a fully functional modular unit, ready for immediate operational use.
Key outcomes included:
- Strong thermal insulation suitable for UAE climate conditions
- Comfortable interior environment with dual AC system
- Secure and durable prefab design for industrial site usage
- Efficient space utilization for both operational and security needs
- High-quality finishing with ACP panels and gypsum ceiling system
The client received a fully operational prefab facility that supports both administrative and security-related functions, ensuring smooth on-site operations within Hamriyah Free Zone.
