Security Cabin With AC (Curved) in DIP Dubai UAE
Modern curved security cabin with integrated AC system, custom-built and installed in DIP Dubai, UAE. Designed for industrial, commercial, and site security applications, this insulated prefab cabin delivers durability, thermal comfort, and efficient workspace functionality for demanding UAE environments.
- DIP, Dubai
- 3m L x 2m W x 3.2m H
- 05/05/2026
About Security Cabin With AC (Curved) – DIP Dubai, UAE
This project involved the fabrication and installation of a custom curved security cabin equipped with integrated air conditioning for a facility located in Dubai Investment Park (DIP), Dubai.
The client required a compact yet highly functional insulated security cabin suitable for access control, security monitoring, and operational supervision within an industrial environment. The unit was engineered using a reinforced steel frame structure combined with high-performance insulation materials to ensure durability and thermal efficiency under UAE weather conditions.
The cabin was delivered as a fully finished ready-to-use modular unit complete with electrical systems, interior finishing, insulation, and split AC installation.
Security Cabin With AC (Curved) - Gallary
Custom Curved Security Cabin with Split AC Installation
The installed unit is a custom curved Security Cabin with AC (3m L x 2m W x 3.2m H) specifically designed for security operations, monitoring, and controlled site access management.
The structure was fabricated using a heavy-duty steel chassis frame with tubular steel sections, central runners, and cross members for enhanced structural stability. All steel components were wire-brushed and coated with protective primer to improve corrosion resistance and long-term durability.
Structure & Build Specification
Base Frame
- Heavy-duty tubular steel chassis frame
- Central runner and cross member reinforcement
- Wire-brushed steel treatment
- Anti-corrosion primer coating for durability
Insulation & Wall System
External Finish: ACP panels
Internal Finish: 12mm gypsum board finished with super white emulsion paint
Wall Insulation: 50mm Rockwool insulation (30kg/m³ density)
The insulated wall system provides excellent thermal and acoustic performance suitable for outdoor industrial environments in Dubai.
Roof & Ceiling System
- 50mm Polyurethane Aluminium/GI Sandwich Panel
- Exterior Flat & Interior Flat finish
- PU Insulation Density: 35kg/m³
- Insulation Thickness: 50mm
- False Ceiling: 12mm gypsum board with super white emulsion finish
The roofing system was designed to provide superior heat resistance and improved indoor comfort for continuous operational use.
Flooring System
- Vinyl flooring with skirting
- Installed over 18mm cement board flooring
The flooring solution offers durability, easy maintenance, and suitability for high daily usage.
Door & Window Configuration
Door
- 1 × Aluminium powder-coated entrance door
Windows (3 Nos.)
- 2 × Side fixed cum sliding clear glass windows

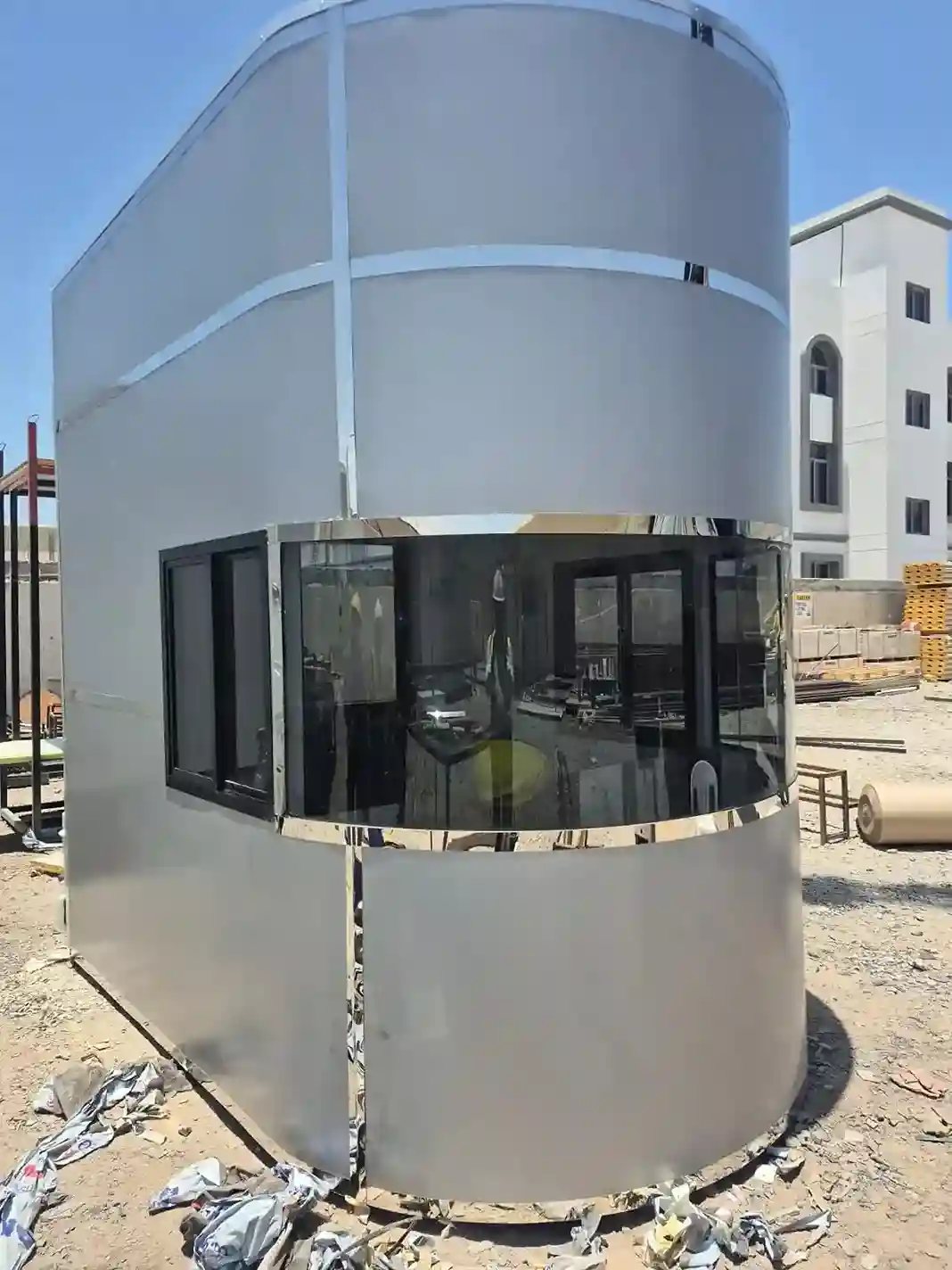

- 1 × Front fixed curved clear glass window

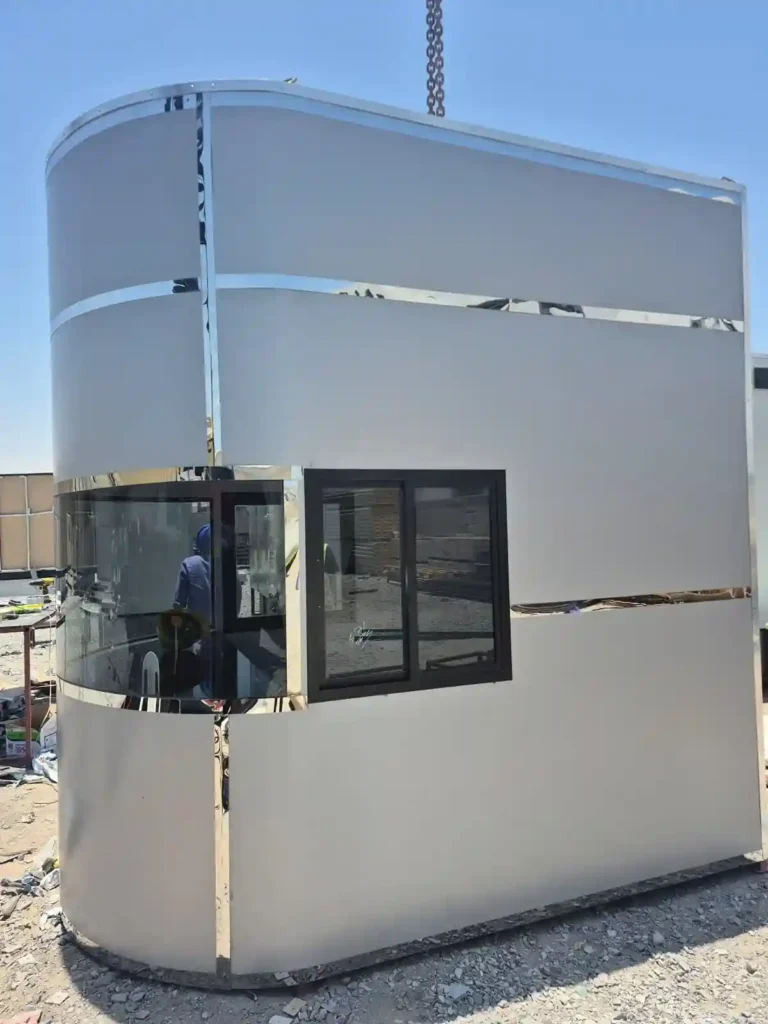

The curved glass front enhances visibility and gives the cabin a modern architectural appearance while improving monitoring efficiency.
Accessories Included
- Small white MDF table installed inside the cabin
Electrical Installation
- Fluorescent LED lighting inside
- Waterproof LED light outside
- Switches and plug points installed
- 32A main power inlet
- 1 × 1.5 ton split AC unit (Super General or equivalent)
Project Highlights
- Location: DIP Dubai, UAE
- Project Type: Curved Security Cabin with AC
- Cabin Size: 3m × 2m × 3.2m
- Structure Type: Insulated Prefab Security Cabin
- Insulation: Rockwool wall insulation + PU roof insulation
- HVAC: 1 × 1.5 ton split AC installed
- Electrical System: Complete concealed wiring with industrial power inlet
- Flooring: Vinyl flooring over cement board base
- Window System: Sliding side windows with curved front fixed glass
Execution & Outcome
The project was completed successfully with full fabrication, delivery, and installation carried out according to client specifications. The cabin was handed over as a fully operational modular security solution ready for immediate use.
Key outcomes included:
- Strong thermal insulation suitable for UAE climate conditions
- Comfortable indoor environment with split AC system
- Modern curved design with enhanced front visibility
- Durable prefab structure for industrial and commercial applications
- Efficient use of compact interior workspace
- High-quality interior finishing with gypsum wall system
The completed curved security cabin now supports secure site monitoring and operational control within DIP Dubai while providing a comfortable and professional working environment for security personnel.
